Sonniger Guard Pro
Industrial Air Curtain

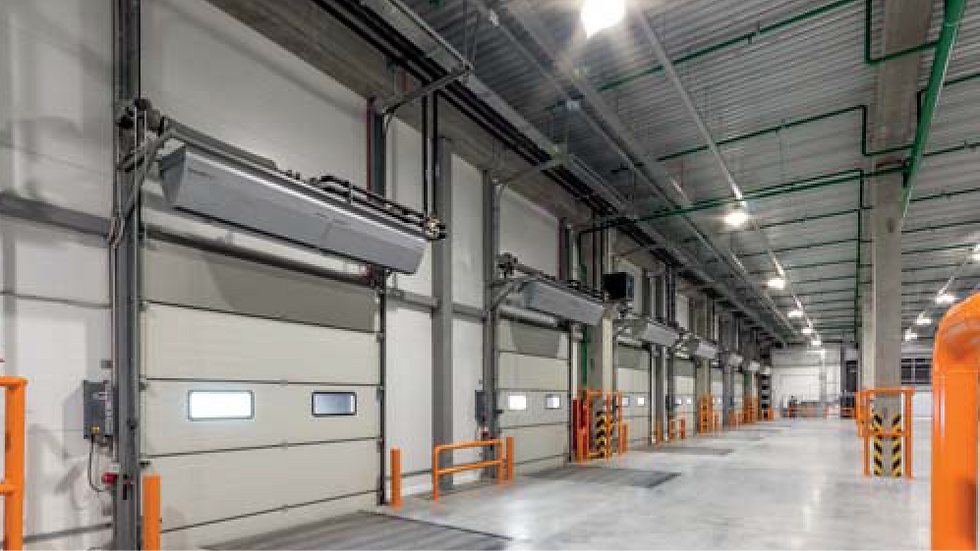

The Sonniger Guard Pro is an industrial-grade air curtain designed for large access doors in warehouses, factories, and logistics facilities. With a modular design covering doors up to 8m high and 12m wide, it delivers powerful climate separation that prevents heat escaping and cold air entering through frequently opened industrial doorways.
KEY FEATURES
Modular 1.5m & 2m sections
Doors up to 12m wide
Ambient, electric, or LPHW
BMS integration
Door switch operated
Horizontal or vertical mount
PRODUCT OVERVIEW
Heavy-Duty Protection for Large Industrial Doors
The Sonniger Guard Pro is built for the demands of industrial environments where large access doors are regularly opened for vehicles, deliveries, and plant movement. Standard commercial air curtains can't cover openings of this scale, but the Guard Pro's modular design handles doors up to 8 metres high and 12 metres wide with ease.
​
By creating a powerful air barrier across these large openings, the Guard Pro prevents heated air from escaping the building and stops cold outdoor air from flooding in. This delivers measurable energy savings, keeps working environments comfortable for staff, and reduces the strain on your heating systems during colder months.
​
The modular system is based on 1.5m and 2m sections that can be combined to match any door width. This gives specifiers and facilities managers the flexibility to cover a wide range of door configurations without resorting to bespoke or custom-manufactured units.
CONFIGURATIONS
Modular Design, Multiple Heating Options
The Guard Pro is available in three heating configurations to suit different building infrastructure and energy requirements. Its modular section-based design means you only specify what you need for your specific door dimensions.
​
-
Ambient (unheated) for buildings where the air barrier alone provides sufficient climate separation, or for summer-only operation
-
Electric heated for sites without existing wet heating infrastructure, providing a self-contained heated air curtain solution
-
LTHW (Low Temperature Hot Water) heated for connection to central heating systems, delivering efficient warmth across large openings
-
Modular 1.5m and 2m sections that combine to cover any door width up to 12 metres
-
Suitable for doors up to 8 metres in height
-

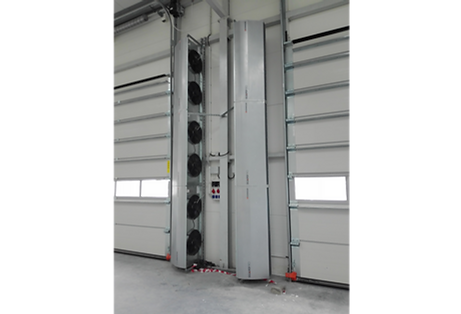

Horizontal mounting above the door or vertical mounting beside it
KEY BENEFITS
Why Choose the Sonniger Guard Pro
The Guard Pro is the go-to industrial air curtain for large doors that standard commercial units simply cannot cover.
Covers Massive Openings
Suitable for doors up to 8 metres high and 12 metres wide. No other air curtain in the Sonniger range covers industrial doors of this scale, making the Guard Pro the only option for large access points.
Door Switch Activated
The included door switch ensures the air curtain operates only when the door is open, automatically switching off when it closes. Built-in speed control allows fine-tuning to suit varying conditions.
Modular Sections
Built from 1.5m and 2m modules that combine to match any door width. No custom manufacturing needed. Specify the exact number of sections for your opening and they join together seamlessly.
BMS Compatible
Can be operated via an individual control panel for simple standalone management, or integrated into a Building Management System for centralised, automated control across multiple units and doors.
Reduces Heating Costs
Prevents heated air from escaping through open doors and stops cold air flooding in. This significantly reduces the energy demand on your heating systems and lowers running costs throughout winter.
Flexible Installation
Install horizontally above the door or vertically beside it. The modular design adapts to various door configurations and spatial constraints found in industrial buildings.
APPLICATIONS
Built For Industrial Scale
The Sonniger Guard Pro is designed specifically for large industrial and commercial environments with oversized access doors.
Warehouses
Loading bays & dispatch centres
Factories
Production floors & vehicle access
Aircraft Hangars
Large hangar doors
Logistics Hubs
Distribution centres
Transport Workshops
Vehicle maintenance bays
Industrial Units
Roller shutter & sectional doors
Cold Storage
Chiller room access
